SixGyro

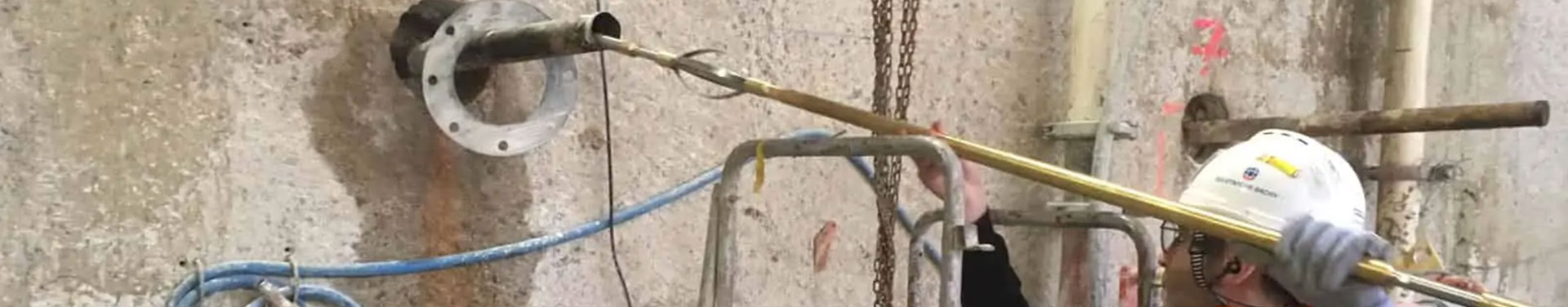

The gyroscopic probe enables precise measurement of borehole deviation at any depth, independent of whether the borehole is vertical, inclined or horizontal. Its performance is unaffected by borehole orientation.

Centralising devices are provided to allow measurements to be carried out in boreholes of any diameter, ensuring reliable positioning of the probe during surveys.

Measurements can be performed in open or cased boreholes, as well as inside metallic drill rods. As the technology is not sensitive to magnetic disturbances, data quality remains unaffected by surrounding metal.

SixGyro: drilling deviation measurement

The small dimensions of the probe (22 mm diameter, 700 mm long and approx. 4 kg in weight) make it easily handleable by a solo operator.

The measurement step is operator-defined. The measurement process is fast (approximately 15 minutes for a 30-metre borehole in 1-metre steps).

As with most deviation systems, the azimuth start point must be measured by other means (topographically, GPS, etc.) and entered into the system.

Device accuracy (supplier data): 0.1° in inclination (0.2%); 0.5° in azimuth (0.9%).

Ultimate measurement accuracy depends on the accuracy of the device, the accuracy with which the azimuth start point has been measured, and the positioning of the probe within the borehole.

The benefits of the SixGyro solution

The small dimensions of the probe (22 mm diameter, 700 mm long and approx. 4 kg in weight) make it easily handleable by a solo operator
The measurement process is fast (approximately 15 minutes for a 30-metre borehole in 1-metre steps)

SixGyro and its applications

Borehole deviation measurements when carrying out operations as varied as injection
Freezing
Jet grouting
Umbrella arch construction
Ground anchor installation
Coring and directional drilling

The added benefits of using SixGyro

Cutting-edge expertise

developed from 20 years of experience and in-house development

The availability of dedicated local teams

as a result of our extensive network

A turnkey service

from installation to provision of pre-processed data in an accessible webspace

A culture of innovation

committed to continual development of solutions more closely aligned with the practical challenges of our clients

A proactive maintenance programme

built around data quality control and monitoring
