Atlas InSAR

Atlas InSAR monitoring studies deliver continuous and adaptable insight into ground movement and asset behaviour across all phases of a project lifecycle, including construction, operation and long‑term maintenance.

Measurement frequency is fully configurable and can be aligned with project constraints and risk exposure. Depending on the criticality of each stage, monitoring updates can be provided on a weekly, bi‑weekly, monthly, quarterly or annual basis, ensuring the right level of control at all times.

Atlas InSAR offers a flexible range of reporting services from rapid monitoring bulletins that highlight the latest ground displacement trends, to in‑depth technical reports featuring detailed analysis of sensitive zones, structures and infrastructure assets.

Reliable, scalable and cost‑efficient, Atlas InSAR is a proven satellite‑based monitoring solution that supports early risk detection and effective mitigation of geotechnical hazards, particularly in complex urban and large‑scale developments.

Continuous ground deformation monitoring from space

Our Atlas InSAR advanced processing chain is designed to work with any type of satellite radar (SAR) images.

Sixense teams can task SAR satellites to acquire images over any site every few days, enabling the development of customized monitoring programs that provide ground and asset motion information and support clients in managing different project situations.

Different satellites will be tasked depending on site and motion characteristics. Atlas InSAR can work with X-, C- or L-band sensors to ensure the most reliable information is obtained for each project.

New constellations are being launched and very soon daily imagery will be available for real-time satellite monitoring programmes at a fraction of the cost of traditional monitoring.

Use case examples

Monitor the impact of construction works

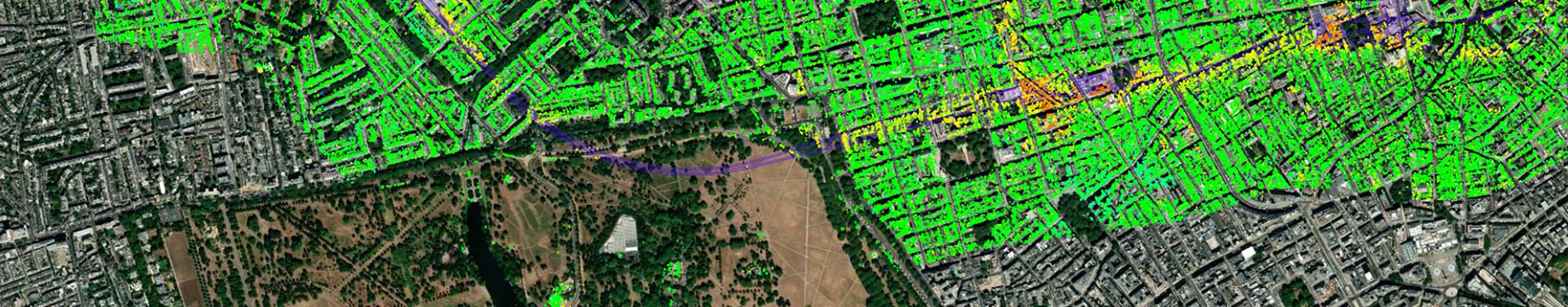

Atlas InSAR monitoring can be applied during the construction phase of any project, providing millions of measurement points with millimetric precision.

The area covered by InSAR analyses can extend beyond the defined Zone of Influence (ZOI), making it a valuable tool for detecting deformations that exceed the expected perimeter, such as those resulting from dewatering activities. This makes Atlas InSAR an ideal solution for addressing subsidence claims and complementing in-situ instrumentation.

Monitor tunneling activities: ground settlement due to volume loss

Atlas InSAR monitoring is particularly suited to monitor ground surface displacement resulting from tunneling activities and to measure its impact on existing buildings and infrastructures.

During tunnelling advancement, InSAR Atlas monitoring solutions are used to monitor ground settlement due to volume loss, verify surveying reference points and map any widening of the settlement outside the calculated ZOI.

Risk reduction in mining and tailings dams

Atlas InSAR Monitoring enables customized monitoring programs to support mining activities.

It can track ground motion at both underground and open-pit mining sites and can be used to ensure the stability of critical infrastructures, including tailings dams, waste dumps, access roads, and pipielines.

By providing regular, high-precision measurements, Atlas InSAR helps mining operators identify potential risks early, optimize safety measures, and reduce operational and environmental impacts.

Early warning tool: detect precursor motion to landslide and slope failures

Atlas InSAR monitoring is an effective tool for detecting precursor movements leading to landslides or slope failures across large areas, such as highways, railways, and pipelines, as well as in remote or critical infrastructure, including mines, tailings dams, and bridges.

Non-linear movements or acceleration in motion can be identified, enabling the implementation of early-stage mitigation measures to reduce risks and enhance safety.

Long-term maintenance

Atlas InSAR Monitoring is the perfect tool to design long term maintenance programmes.

It provides cost effective measurements and wide area coverage to assess structural health and detect displacement likely to cause damages to infrastructure.

The additional benefits of using our Atlas InSAR solution

A unique competence combining InSAR data and Ground Instrumentation data

• Integrated ground and space sensor monitoring solutions
• Applicable to many industries
• More than 800 engineers dedicated to construction
• 10+ years of radar data processing expertise

Atlas InSAR - a high quality processing chain

• In-house InSAR solution developed in 2004
• Constantly evolving
• Compatible with all satellite sensors
• Adapts to new SAR data volumes
• Ready for next-generation missions

Beyond Monitoring - advanced web-GIS platform

• Actionable InSAR data
• User-friendly and intuitive
• Customised insights
• Advanced analytics and filtering tools
• Multi-sensor integration
• Holistic asset control

Download the Atlas InSAR solution datasheet
